TEDA Production Equipment Automatic Production Line For Polyamide Sigle Screw Extrusion Nylon PA66 Thermal Break Stripe APL002
PRODUCT DETAILS
Model | TEDA-APL002 | Assembly Structure | Fully Automatic Integrated Extruder |
Product Type | Nylon 66 GF25 | Feeding Method | Single Feeding |
Number of Screws | Single Screw | Screw Diameter | 75 cm |
Automation | Automatic | Extrusion Capacity | Approximately 15-20 cm/min |
Voltage | 380V(Customizable) | Power (W) | 38 kW |
Mold | Customizable | Temperature | 400°C |
Cutting Length | Accuracy ±1 mm | Operation Interface | Integrated PLC Control |
Dimensions (LWH) | 9m * 1.2m * 2.4m | Weight | 1.7 tons |
Transport Packaging | Plywood Box | Shape | Various Shapes |
Product Description
Our production process is comparable to that of Teda, with advanced techniques in the production of hollow cavity profiles.

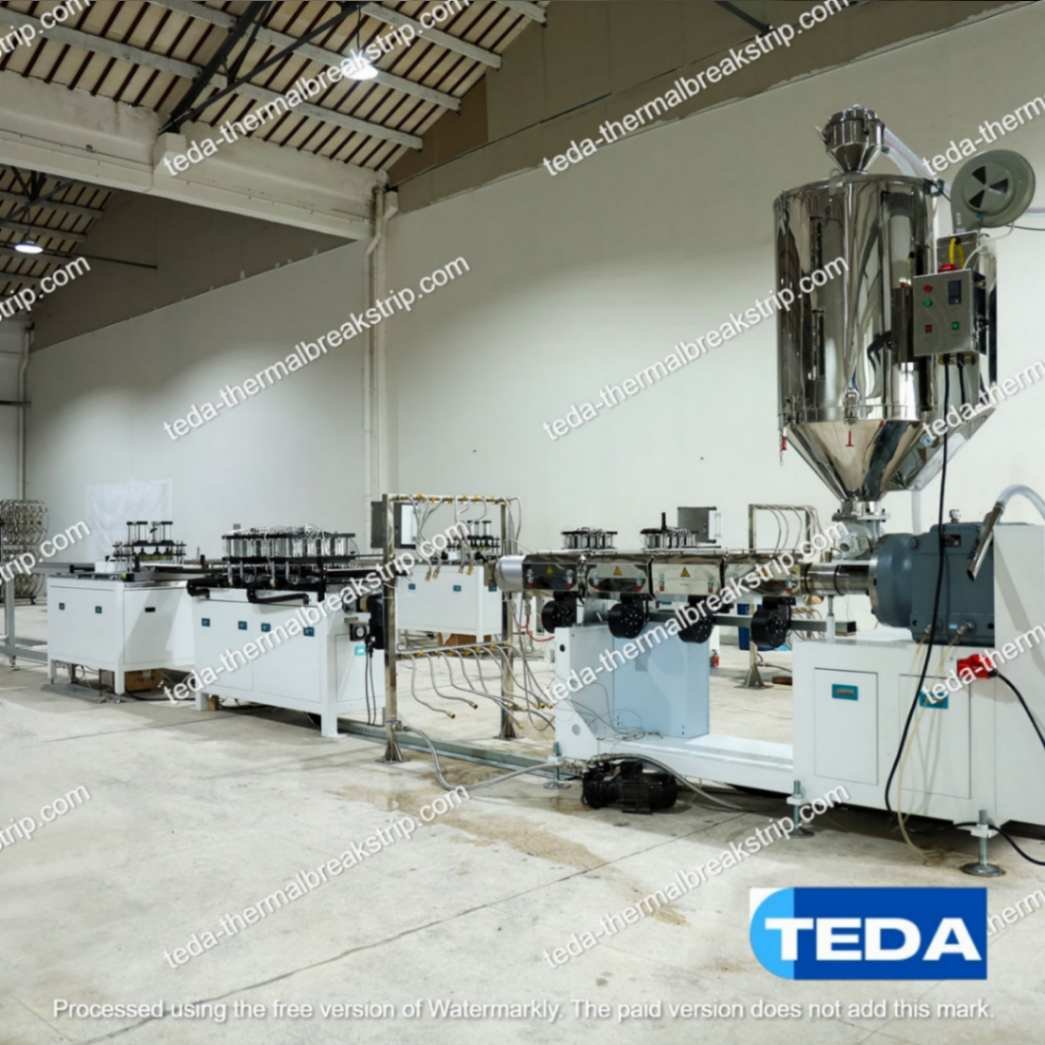

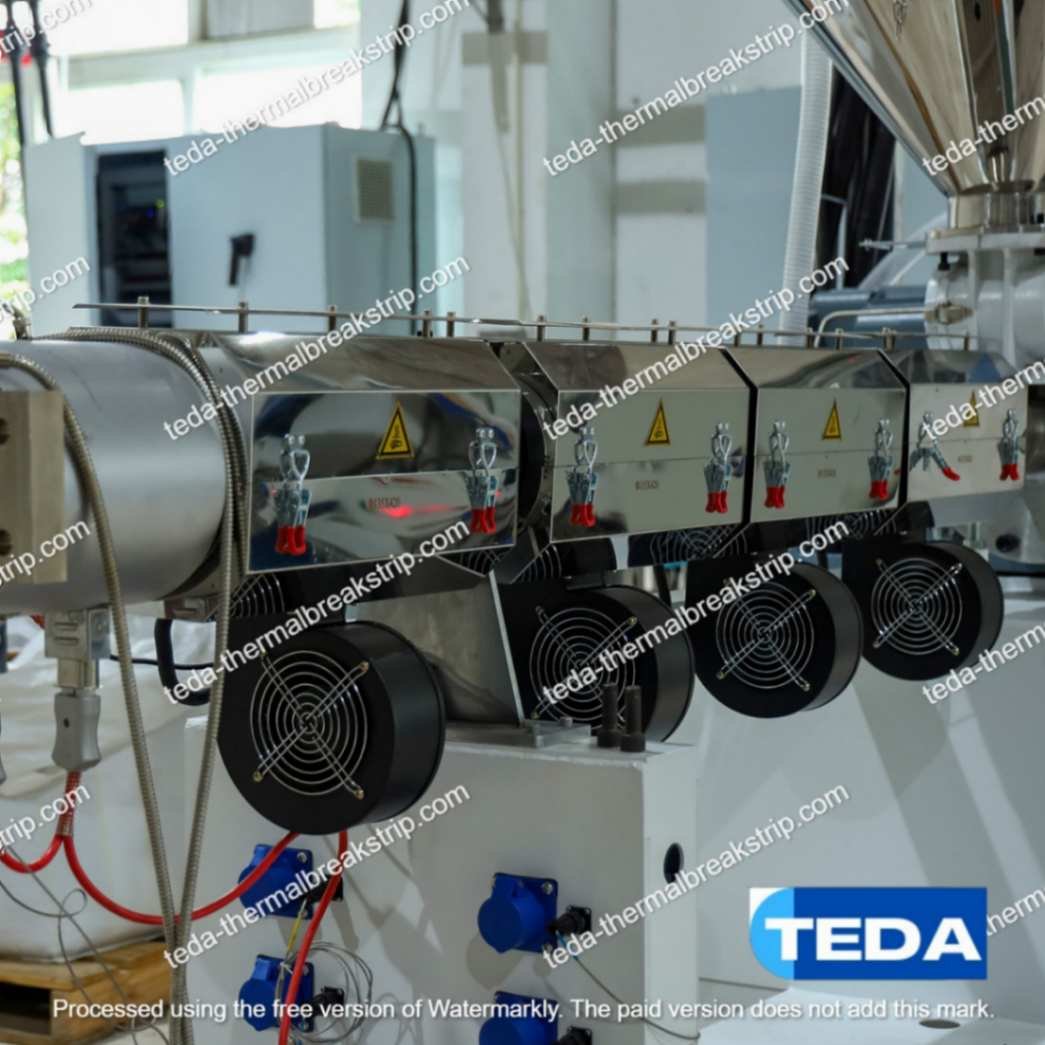

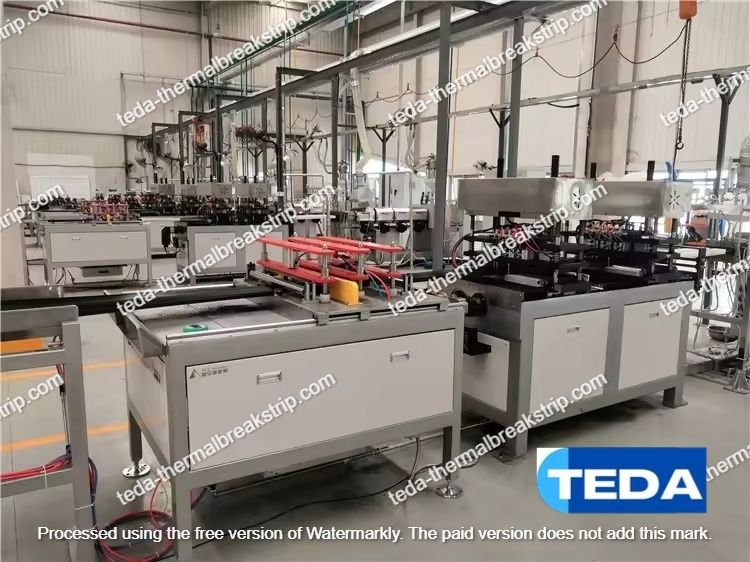

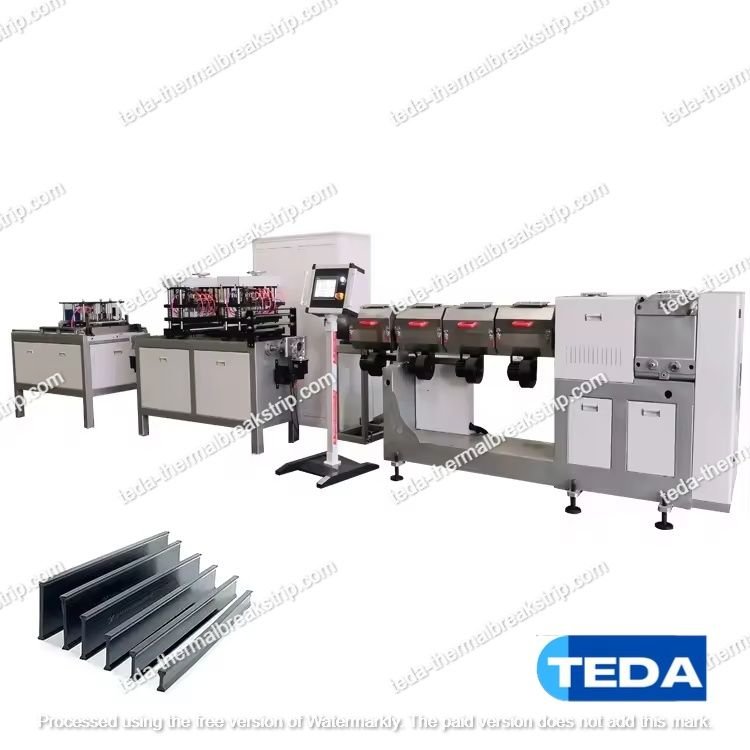

Our company has independently developed and manufactured a fully automatic nylon extruder production line, which is a highly efficient and intelligent automated production equipment specifically designed for the production of nylon thermal break strips. This production line integrates efficient and stable drying systems, heating systems, extrusion systems, cooling systems, and a superior traction system, along with an automatic cutting system, independent electric control system, and one-button setting PLC system. With its automated control, it ensures efficient and stable production operations, significantly improving production efficiency and product quality.
| Other Products | Our Products | Remark | |
|---|---|---|---|
| Screw Diameter | 50CM | 70CM | |
| Molds | 2 pieces | 3 pieces | Unique flow guide layer ensures stable product quality |

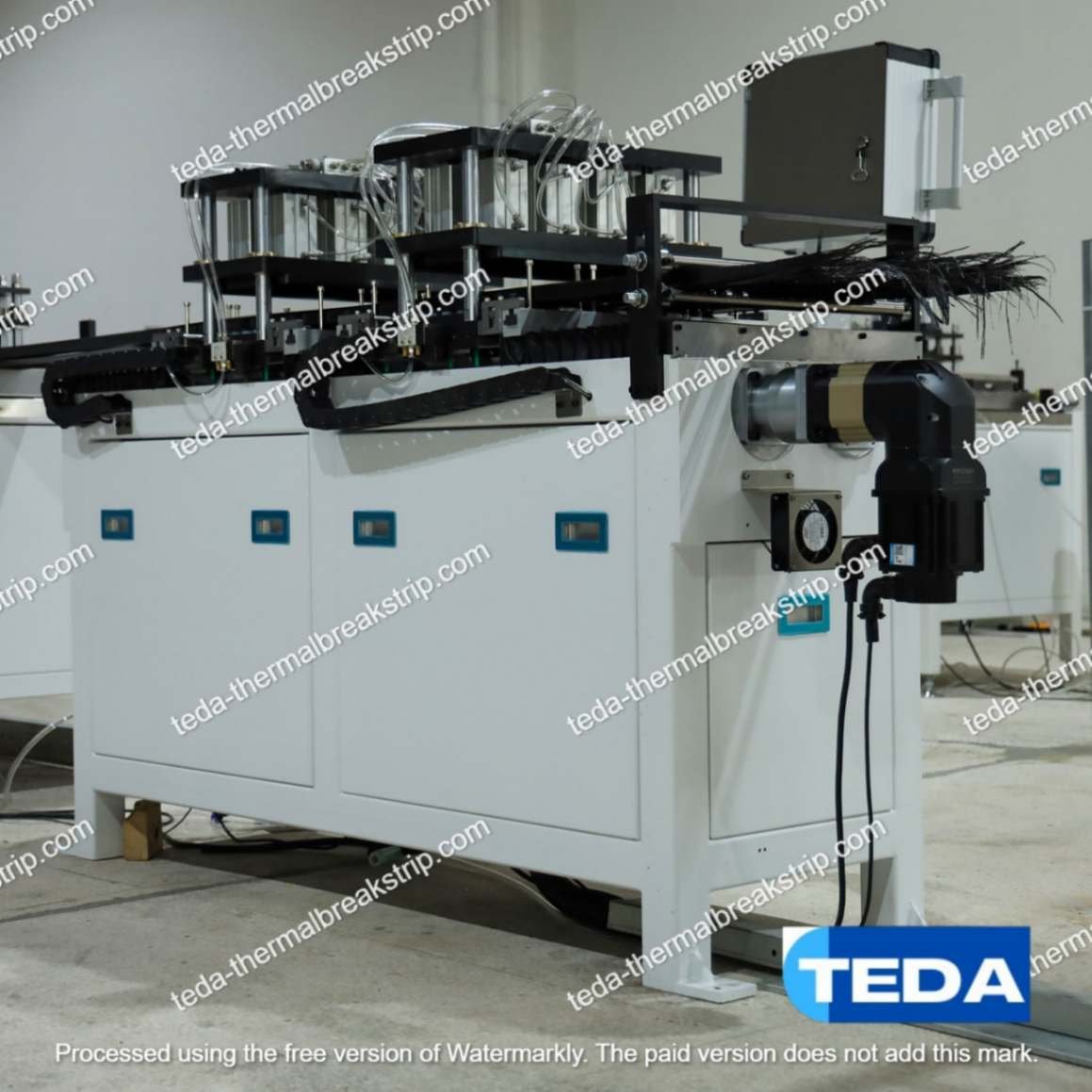

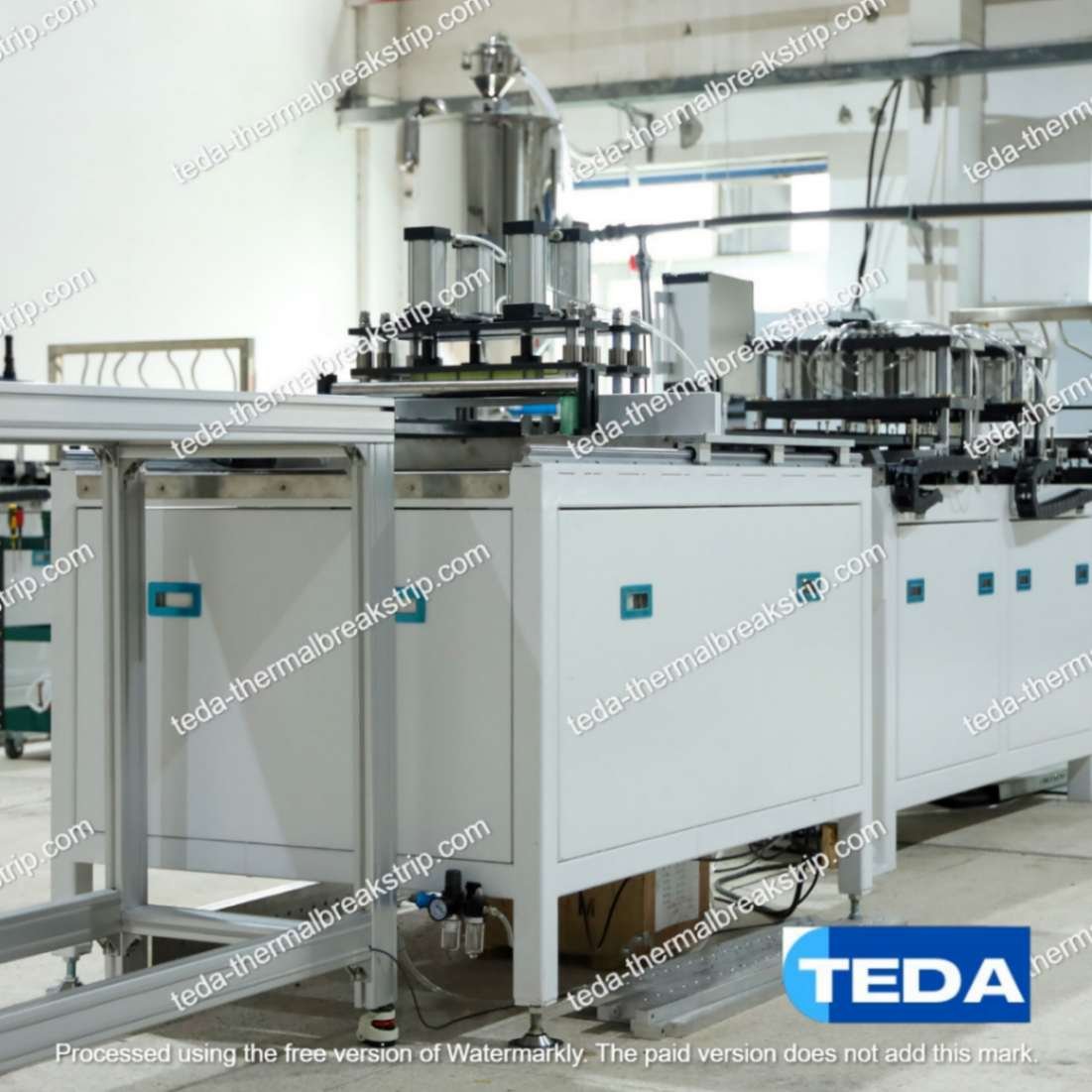

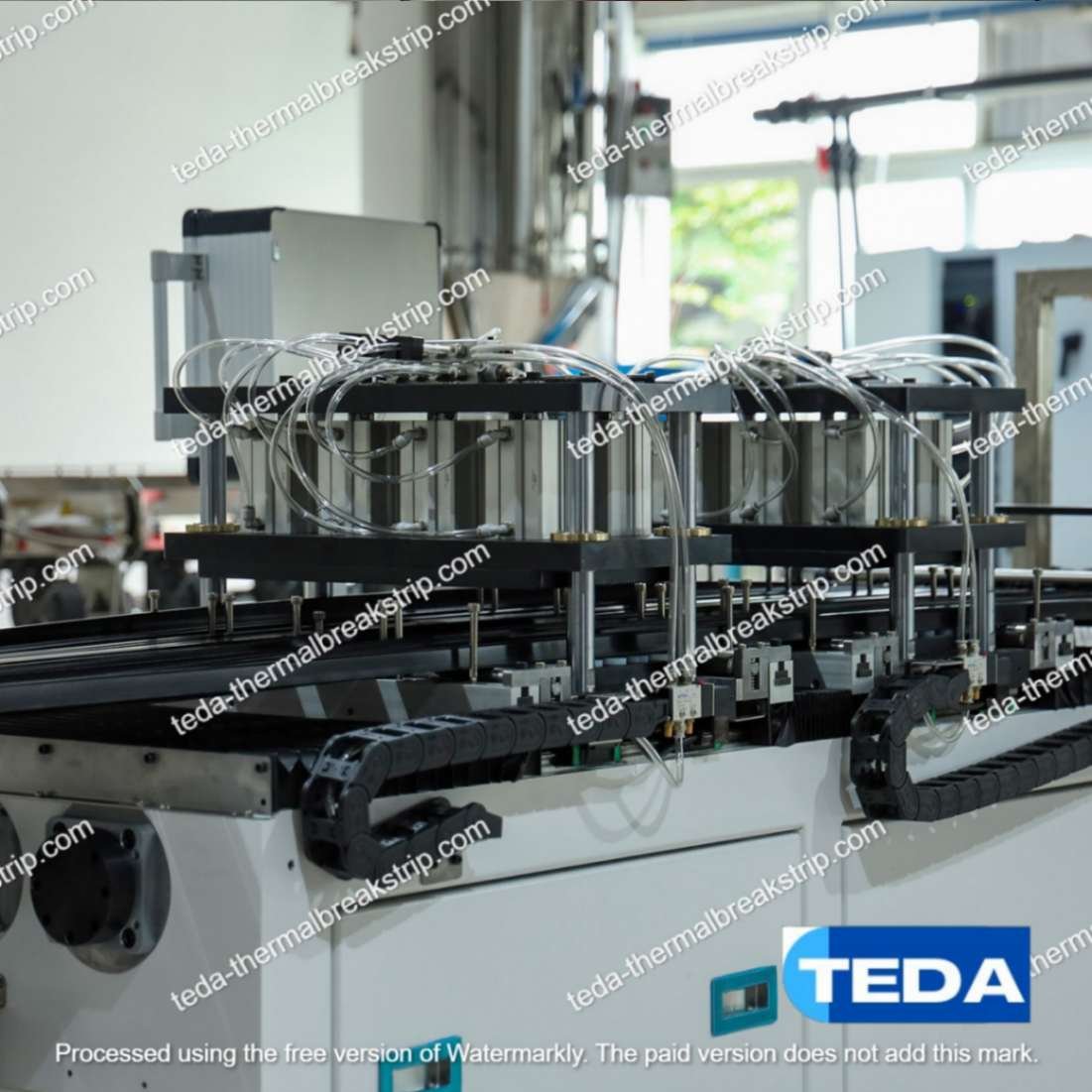

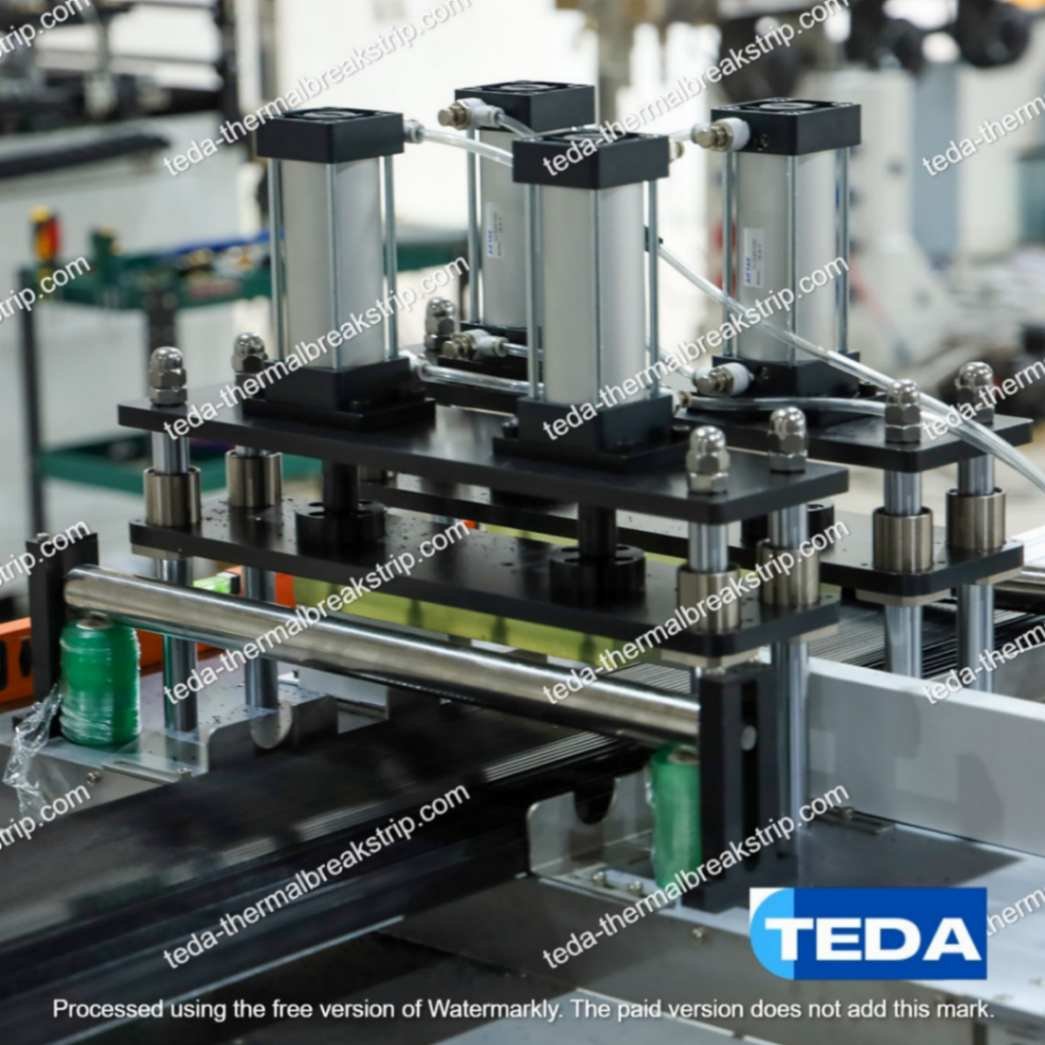

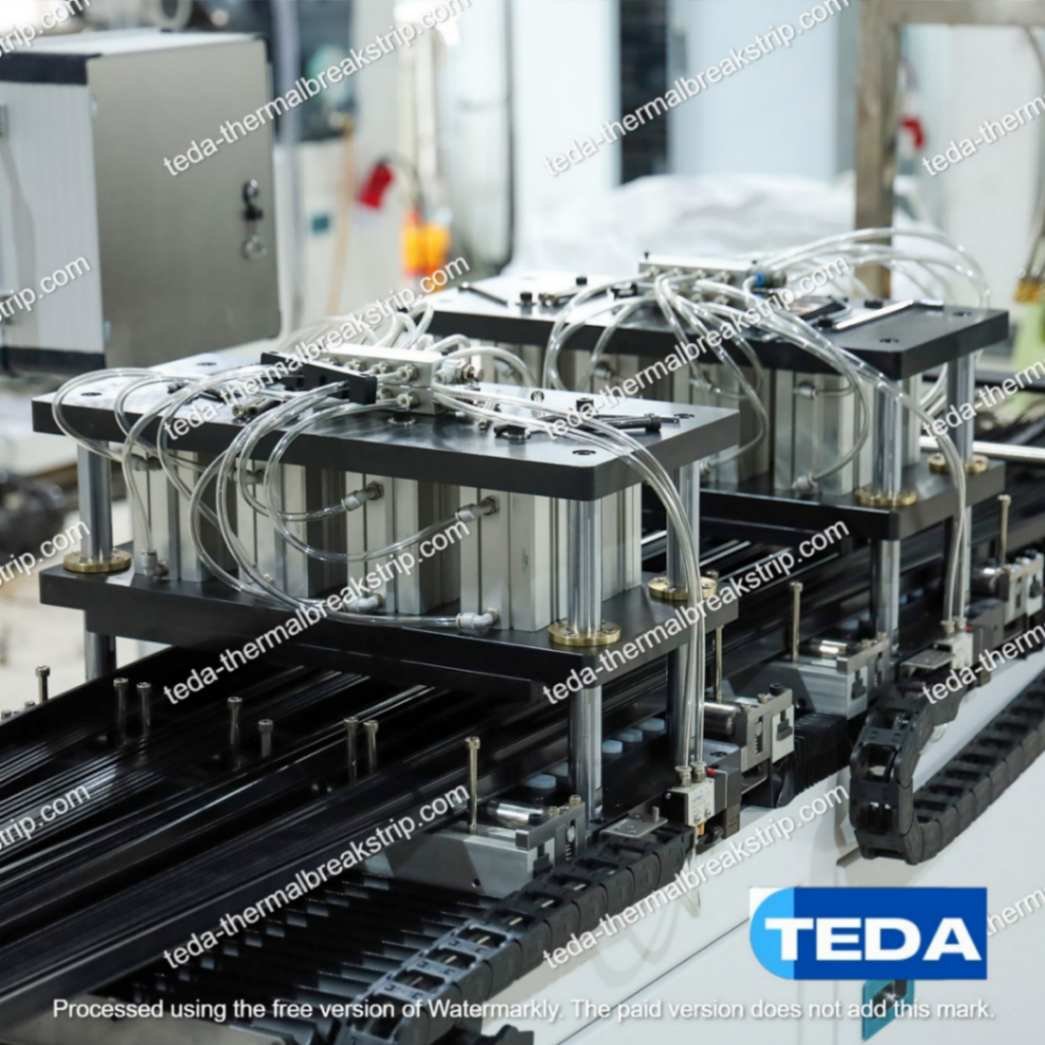

| Superior Traction System | Manual control | Fully automatic adjustment with linked control | One-button setting with linked front and rear machine control, resulting in more stable final products |
| Automatic Cutting System | Manual control | Automatic detection with linked control | |
| Independent Electric Control System | Single machine control | Centralized control of the entire equipment set | |
| PLC System | Single machine | One-button setting with linked control | |
| Extrusion Capacity | Simple processing | Complex processing | Especially for the mass production of hollow cavity profiles with complex shapes, our yield rate exceeds 98%. Other products either cannot be manufactured or have a low yield rate. |
| Efficiency | 7000 meters/day | 10000 meters/day | Based on C14 Product Calculation |
Product Features
- Fully Automated Operation: The equipment adopts an advanced automated control system, achieving full automation from raw material feeding and extrusion molding to finished product packaging. Employees only need to complete initial feeding and simple operation settings, greatly reducing labor costs and operational difficulty. Currently, only one worker is needed to operate four production lines in our factory.
- High Efficiency and Stability: The equipment is precisely designed and rigorously tested, offering exceptional production stability and efficiency. All parameters during the production process can be monitored and adjusted in real-time, ensuring consistent and stable quality of each batch of products.
- Low Maintenance Requirement: The production line uses high-quality components and advanced processes, significantly extending the equipment’s service life. Over the past three years, the equipment has had almost zero maintenance rate, drastically reducing maintenance costs and downtime.
- Premium Raw Material Support: We provide high-quality self-developed PA66 raw materials that have been optimized and verified over a long period, ensuring high stability and performance. These materials guarantee that the nylon thermal break strips produced have excellent physical properties and durability.
- Customizable Molds: The equipment supports the use of highly customizable molds, designed and manufactured according to the specific needs of the customers. Custom molds can significantly improve production efficiency and meet diverse product requirements.
Application Fields
Why Are Our Products Relatively Expensive?
Because we are the world leader in nylon thermal break strip production technology, we possess exceptional expertise and authority in this field. We are confident that once you see our product process, you will be amazed by its value. Additionally, our overall costs are much lower in the long run than those of other companies’ products.
Professional: Focusing on the production process of nylon thermal break strips, we provide comprehensive technical support from equipment and raw materials to molds, helping customers quickly get started with production.
Originality: Our equipment is independently developed based on actual needs, the raw material formulation is stable over the long term, and highly customized molds accelerate production efficiency.
Development-Oriented: Our professional R&D team can provide customized solutions according to customer requirements.
Cost-Effective: Fully automated equipment with low maintenance requirements ensures long-term stability of the final product, reducing overall costs.
