TEDA Plastic Granules Customized plastic granules according to customer requirements PGC002
PRODUCT DETAILS
Color | Black | Material | PA66+GF25 |
Grade | Extruion | Pattern | Black |
Type | Glass Fiber Reinforced Plastic Granules | Form | Polyamide 66 Resin Pellet |
Fiber Type | Glass Fiber Reinforced Plastic | Specification | 25KG/Bag |
Relevant technical standards
- GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles — Part 1: Thermal barrier strip of polyamide
- EN 14024-2004 Metal profiles with thermal barrier — Mechanical performance Requirement, proof and tests for assessment
- YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
- JG/T 174-2005 Thermal barrier strips for construction industry
- GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture — Part 6: Thermal barrier profiles
- GB/T 8478-2008 Aluminium windows and doors
- GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
- JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings
TEDA-Technical specification (PA66)
NO. | Item | Unit | GB/T 23615.1-2017 | TEDA–Technical specification | |
1 | Density | g/cm3 | 1.30±0.05 | 1.30±0.05 | |
2 | DSC melting peak temperature | ℃ | ≥255 | ≥260 | |
3 | Testing for tensile cracks | —— | No cracks | No cracks | |
4 | Shore hardness | —— | 80±5 | 80±5 | |
5 | Impact Strength (unnotched in low temperature) | kJ/m2 | ≥50 | ≥60 | |
6 | Tensile Strength (longitudinal) | MPa | ≥90 | ≥100 | |
7 | Elongation at break(longitudinal) | —— | ≥3% | ≥3% | |
8 | Elasticity modulus | MPa | ≥4 500 | ≥5 000 | |
9 | Tensile strength | Type I (Section height﹤20mm) | MPa | ≥90 | ≥100 |
Type I (Section height≥20mm) | MPa | ≥80 | ≥90 | ||
Non-type I | MPa | ≥25 | ≥30 | ||
10 |
| Type I (Section height﹤20mm) | MPa | ≥55 | ≥60 |
Type I (Section height≥20mm) | MPa | ≥45 | ≥50 | ||
Non-type I | MPa | ≥20 | ≥25 | ||
11 | Low temperature | Type I (Section height﹤20mm) | MPa | ≥90 | ≥100 |
Type I (Section height≥20mm) | MPa | ≥80 | ≥90 | ||
Non-type I | MPa | ≥25 | ≥30 | ||
12 |
| Type I (Section height﹤20mm) | MPa | ≥85 | ≥95 |
Type I (Section height≥20mm) | MPa | ≥75 | ≥85 | ||
Non-type I | MPa | ≥22 | ≥25 | ||
13 | Aging resistance | Type I (Section height﹤20mm) | MPa | ≥60 | ≥65 |
Type I (Section height≥20mm) | MPa | ≥55 | ≥60 | ||
Non-type I | MPa | ≥20 | ≥25 | ||
14 | Typical thermal | Heat flow meter method | W/(m • K) | 0.3 | 0.3 |
15 | Linear expansion coeffecience typical value | -1 K | 2.3×10-5～3.5×10-5 | 2.3×10-5～3.5×10-5 | |
16 | When selecting non-Type I polyamide profiles, engineering design verification should be carried out. | ||||
1. Sample water content less than 0.2% by weight.
2. Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3. Our standard products （PGP001） can accommodate the production of over 95% of thermal barrier profiles. For specific product performance requirements of the final thermal barrier profile, we will need you to confirm adjustments to the production formula of the pellets. Likewise, for the re-formulated PA66GF25 pellets, we will conduct trial production in China to meet the required specifications before shipping them to you.
Product Description

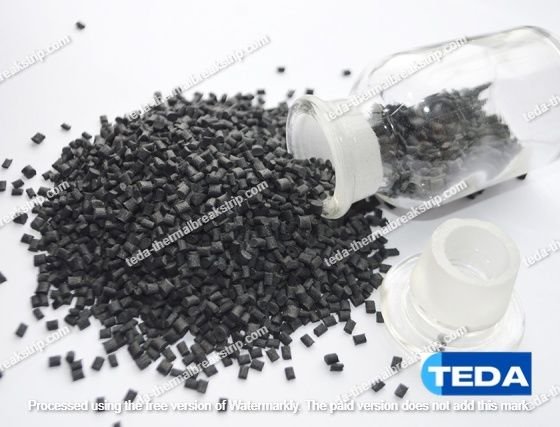

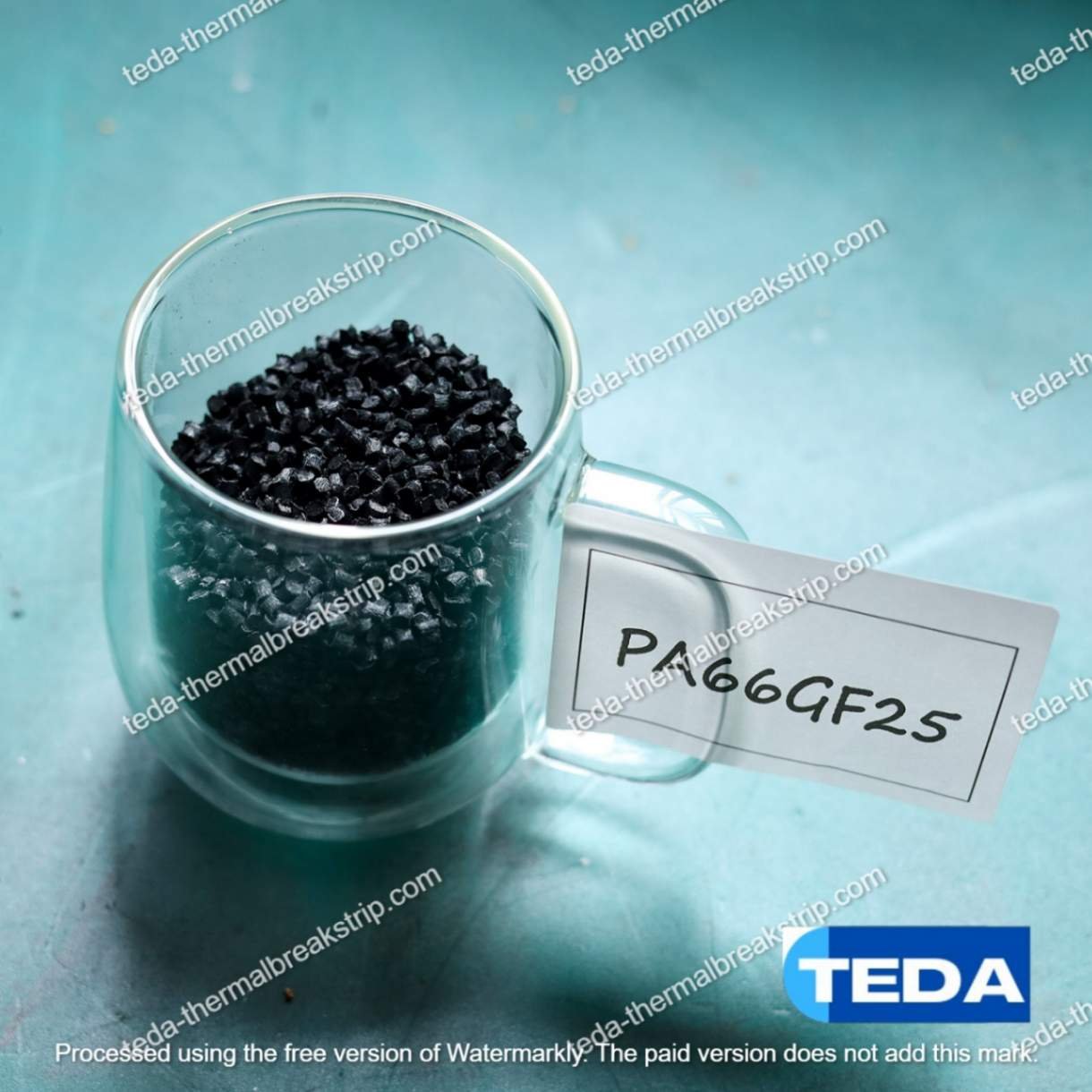

PA66+GF25 is a reinforced polyamide 66 (PA66) plastic granule enhanced with 25% glass fiber. It boasts excellent mechanical properties, heat resistance, and chemical resistance, making it widely used in engineering plastic components that require high strength, high rigidity, and superior heat resistance. Due to its excellent mechanical properties and thermal stability, the reinforced characteristics of PA66G25 material enable it to perform exceptionally well in various harsh environments.
The custom version of PA66G25 granules, model PGC002, can be specifically tailored to meet your unique performance requirements for the final thermal barrier strips. If you have special requirements for the performance of the final delivered thermal barrier strips, please provide specific technical specifications, and we will adjust the formulation accordingly. The reconfigured PA66GF25 granules will be trial-produced in China to meet the requirements before being shipped to you.
Product Features
- High Strength and Rigidity: Due to the reinforcement of glass fibers, nylon PA66+GF25 has extremely high mechanical strength and rigidity, capable of bearing significant loads and pressure.
- Excellent Heat Resistance: PA66+GF25 maintains good performance in high-temperature environments, with a heat resistance up to 200°C, making it suitable for high-temperature conditions.
- Superior Chemical Resistance: This material exhibits good resistance to various chemicals, including oils, solvents, and some acid and alkali solutions.
- Low Water Absorption: Nylon PA66+GF25 has a low water absorption rate, ensuring dimensional stability and mechanical performance in humid environments.
- Good Processability: PA66+GF25 is easy to mold and process, meeting the demands for complex shapes and high-precision products.
- Customized Product: The PA66+GF25 pellets produced by our company have undergone years of repeated formulation adjustments, making them the ideal raw material for producing nylon thermal barrier strips. They offer stable output and excellent product qualification capabilities, with final products exceeding both Chinese and European standards in various metrics.
Application Fields
- Automotive Industry: Used for manufacturing automotive engine components, transmission system parts, and interior parts such as intake manifolds, hub caps, and seat frames.
- Electronics and Electrical Appliances: Suitable for producing electronic component housings, connectors, switches, and electrical insulation parts.
- Industrial Machinery: Used to produce high-strength mechanical parts such as gears, bearing housings, and transmission devices.
- Construction and Home: Applied in the manufacturing of durable building materials and home products, such as window frames, pipe fittings, and furniture accessories.
Why Are Our Products Relatively Expensive?
Because we are the world leader in nylon thermal break strip production technology, we possess exceptional expertise and authority in this field. We are confident that once you see our product process, you will be amazed by its value. Additionally, our overall costs are much lower in the long run than those of other companies’ products.
Professional: Focusing on the production process of nylon thermal break strips, we provide comprehensive technical support from equipment and raw materials to molds, helping customers quickly get started with production.
Originality: Our equipment is independently developed based on actual needs, the raw material formulation is stable over the long term, and highly customized molds accelerate production efficiency.
Development-Oriented: Our professional R&D team can provide customized solutions according to customer requirements.
Cost-Effective: Fully automated equipment with low maintenance requirements ensures long-term stability of the final product, reducing overall costs.
